Canrig 1275AC Top Drive

Canrig model 1275-681, 750 ton top drive.

It was overhauled/Rebuilt by Canrig USA and has OEM COC. It is a complete package from the travelling block down including top drive in shipping frame, back-up wrench, dolly, and travelling block (hoses/service loops not included)

Canrig Topdrive Mdl. 1275 Top Drive Drilling System Complete:

• 51,400 Ft/Lbs. Continuous Torque @ 117 RPM

• 72,200 Ft/Lbs. Intermittent Torque @ 117 RPM

• Max. Speed Rating 18,400 Ft/Lbs. @ 265 RPM

• 750 Ton Hoisting Capacity

• 472 Ton Drilling Capacity

• 1150 HP Continuous Input Power

• 95,000 Ft/Lbs. Nom. Breakout Capacity

We also have a travelling block that goes with it as follows:

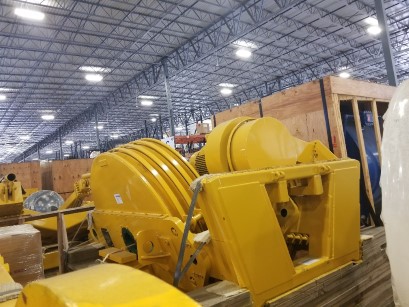

• Canrig Split Type Traveling Block rated @ NT w/8 ea. 72inch Sheaves grooved for 2inch dia. Wire Rope.

• Canrig complete model number: Model SB-4/8-72-750-C-2.00 and PN AY18540.

Top drive nameplate details as follows:

• Model: 1275AC-681

• Load Rating: 750 TONS

• Quill Connection: 7-5/8 Reg

• WP: 7500 psi

Travelling Block nameplate details as follows:

• Model: SB-4/8-72-750-C-2.00 (API 8C PSL2)

• Load Rating: 750 TON

• Line Size: 2”

Spec Sheet: Canrig 1275AC-681 Spec

Certificate of Conformance: CERTS

Message us now for more information on this one.
