Mud Pumps/Systems Rig Components

F1000 Powered Mud Pumps

Price on Request


  • F1000 Powered Mud Pumps
  • F1000 Powered Mud Pumps
  • F1000 Powered Mud Pumps
  • F1000 Powered Mud Pumps
  • F1000 Powered Mud Pumps
  • F1000 Powered Mud Pumps
  • F1000 Powered Mud Pumps
  • F1000 Powered Mud Pumps
  • F1000 Powered Mud Pumps
  • F1000 Powered Mud Pumps

Equipment Summary

Price : Price on Request
Type : Equipment For Sale
Date : August 10, 2021
Make : Continental Emsco
Model : F1000
Year :
Condition : Used (good)
Warranty : No
Location : Oklahoma, USA

Description

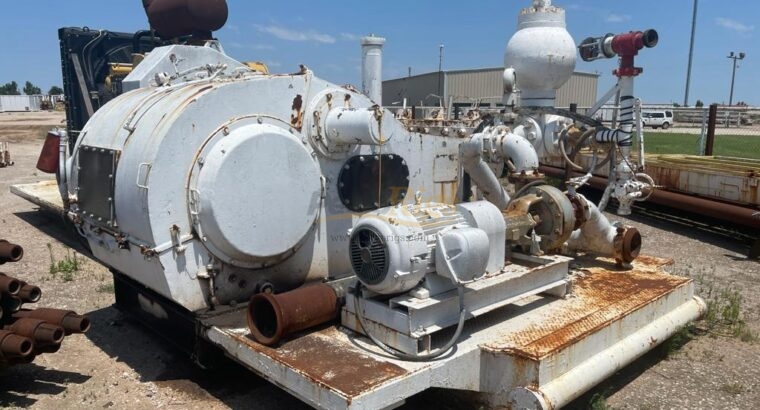

Two (2) Continental Emsco Mud Pump Packages with CAT Power

F-1000 Triplex Pumps powered with CAT 3508’s, Skidded & Ready to work

Inspected & Started Routinely “low hours” (scroll down to see start-up/run-out video)

Additional Information:
Nominal Horsepower Rating @ 140 SPM: 1,000 HP (746 kW)
Size Maximum Liner By Stroke: 6-3/4″ X 10″ (171 mm x 254 mm)
Gear Type: Herringbone
Gear Ratio: 4:32:1
Suction Manifold Fem. Thd. : 12
Discharge Outlet: 5″ (127 mm) 5000 API Flange
Dimensions & Weights:
Overall Length: 14′ (4,267.2 mm)
Overall Width (Pinion Shaft): 7′ 5″ (2,261 mm)
Overall Height (Less P.D.): 5′ 11″ (1,803.4 mm)
Skid Width: 7′ 10″ (2387.6 mm)
Pinion Shaft Diameter: 7-3/4″ (197 mm)
Keyway: 2″ X 1″ (51 mm X 25.4 mm)
Approximate Weight: 38,070 lbs. (17,268 kg)

Message us below to request a formal price quote, or to schedule a site inspection
