Equipment Summary

Price : Price on Request
Type : Equipment For Sale
Date : July 18, 2022
Make : Franks
Model : Cabot 900
Year :
Condition : Used (good)
Warranty : No
Location : USA, Texas

Description

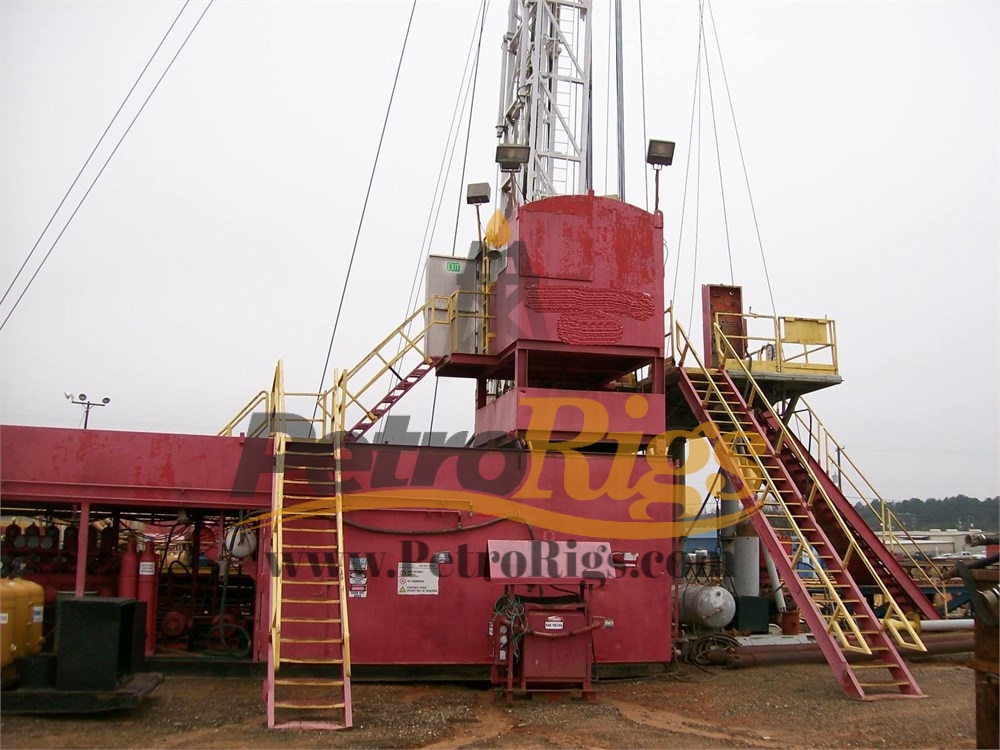

One (1) FRANKS/CABOT 900 DRILLING RIG W/ 117′ x 350,000 LB MAST MTD. ON A 6-AXLE CARRIER

DRAWWORKS: Franks Cabot 2342, with an input rating of 900 horsepower, Parmac V-80 hydromatic brake, crown o matic and Foster catheads, 1-1/8” drill line
PRIMARY POWER: Two Caterpillar C-13 engines rated at 500 HP each, equipped with two Allison CLBT 5860 power shift transmissions
MAST: Franks Cabot D350-117 telescoping, 117 ft. clear height x 15 ft. base at floor, API static hook load of 350,000 lbs. on 8 lines
SUBSTRUCTURE: Franks Cabot, telescoping, with 17 ft. floor height and 13 ft. clear height under the rotary beams – Substructure is designed for a 350,000 lbs. casing load simultaneous with a setback load of 200,000 lbs.
CARRIER: Franks Explorer III six axle carrier w/single man cab, rotary drive assembly, air/fuel/hydraulic tanks, drill line w/spool, braden hydraulic winch, folding walkways, 18 x 22.5 front & 11 x 24.5 rear tires w/budd wheels

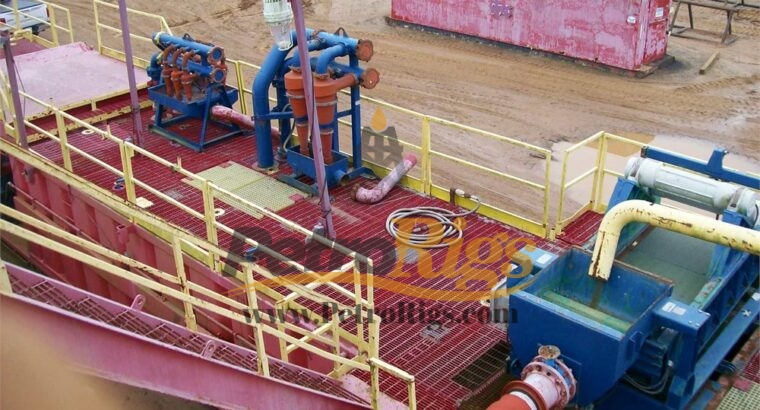

MUD PUMPS: Two – National F 1000 mud Pumps with Caterpillar 3508 engines

➡ Complete Rig Inventory
