Equipment Summary

Price : $45,900.00
Type : Equipment For Sale
Date : February 28, 2022
Make : Mi Swaco
Model : 414
Year : 2014
Condition : Surplus New
Warranty : No
Location : Mexico

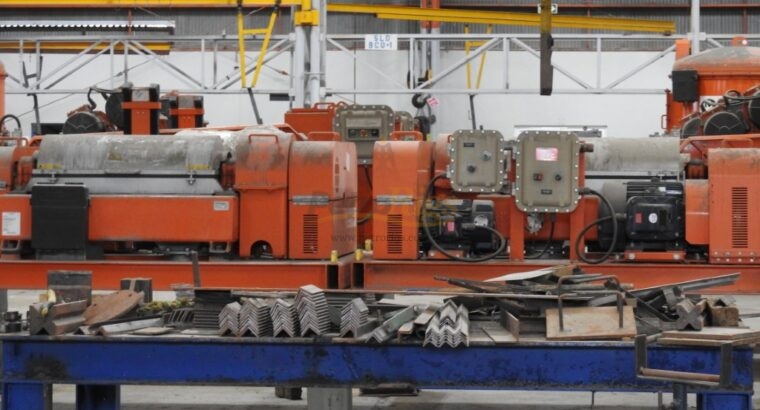

Two (2) Un-used M‐I SWACO decanting centrifuge Model 414’s!

460V/60Hz/3 phase/1750rpm, 14| D x 34.0| L (353 mm X 860 mm) stainless steel rotating assembly. Speeds: 1900, 2500 & 3300 rpm, with torque overload protection by mechanical clutch. V‐belt driven main drive through a hydraulic fluid coupling by a 25HP explosion proof electric motor. V‐belt driven back drive through the sunwheel shaft and a two step planetary 3.5 kNm gearbox with a 57:1 ratio by a 7.5 horsepower explosion proof electric motor. Main and back drive differential from ‐18 rpm to +85 rpm. Mounted on oilfield rugged and painted skid: 95.5| L x 70| W x 34.0| H. Furnished with belt guards, gear box cover, dual sheaves, electrical motor control panel, fittings and feed pump hoses. Rated for N.E. C., Class I, Division 1, Group D, hazardous locations. UL/CSA. Ship wt: 4,270 lbs. (1,937 Kg)
Weight: 4270.00 lbs.
Dimensions: 95 x 70 x 34 in

*Pricing: price is per unit

Message us below for purchasing or to schedule an inspection!
