Handling/Traveling Equipment Rig Components

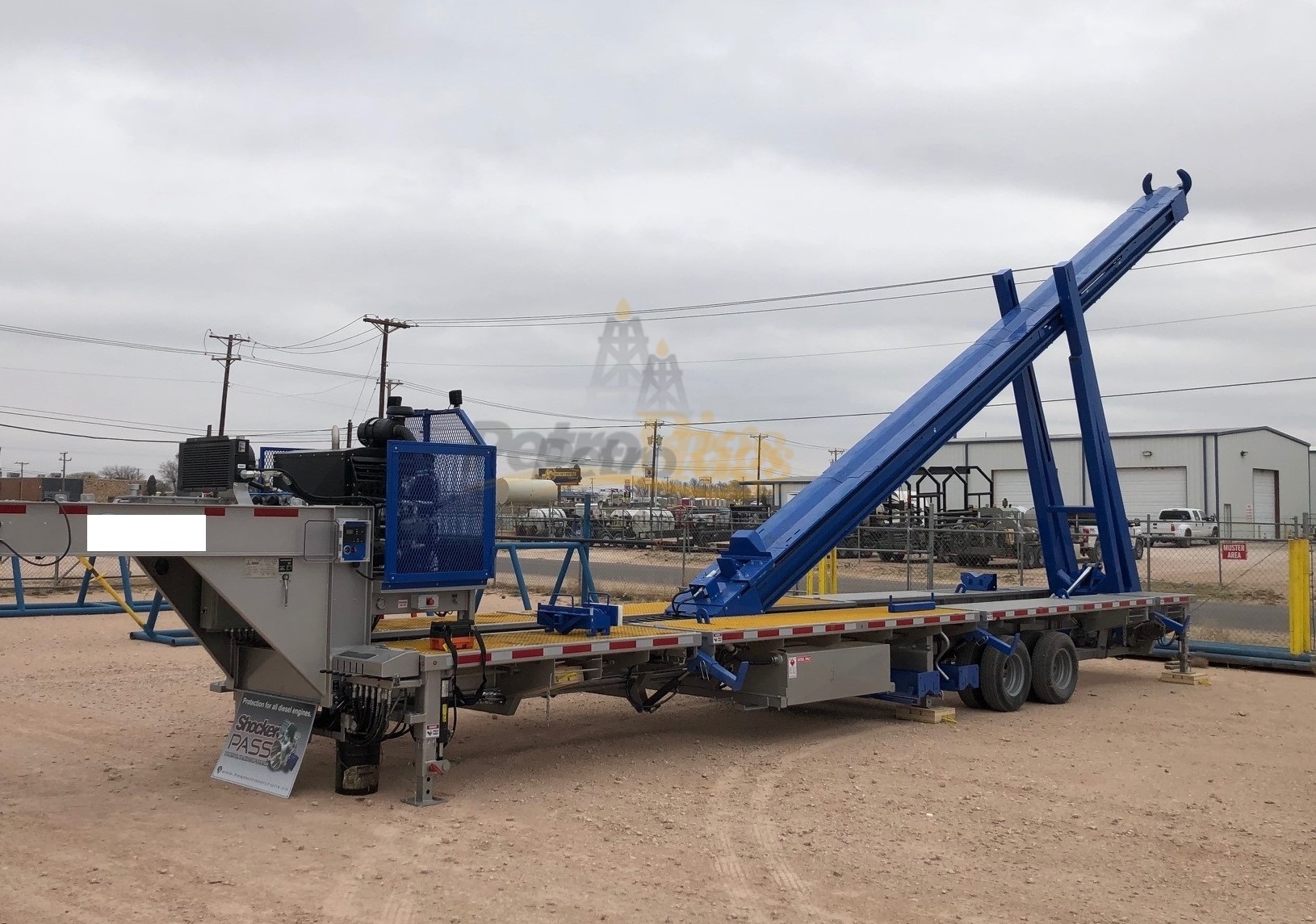

Superior Rig Commander Catwalk

Price on Request


  • Superior Rig Commander Catwalk

Equipment Summary

Price : Price on Request
Type : Equipment For Sale
Date : June 15, 2020
Make : Superior Rig Innovations
Model : Commander
Year : 2019
Condition : New
Warranty : Yes
Location : Alberta, Canada

Description

Brand New and Never Used Catwalk!

•Certified Lifting Capacity of 4,000 lbs.

•Maximum Tubular OD Diameter of 13 3/8”

•Equipped with SRI VTPS (Variable Trough Position System)

•Max standard unit reach is 27Ft

•Includes 6Ft Trough Extension

•Operated and Controlled by Class 1 DIV 2Wireless Remote

•75 HP HATZ Tier 4 Diesel Engine

•90 Gallon Fuel Tank

•Integrated Hydraulic & Engine Cooling System

•84 Gallon Hydraulic Tank

•Auxiliary and Main Valve lock out valve

•Cold Weather Hydraulic Fluid Bypass Valve

•3 Trough Kickers for both ODS & DS operations

•3 Pipe Rack Indexers on both DS & ODS. (18” Pipe Racks)

•Trough Skate system that will travel full length of Trough

•Hydraulic Leveling Jacks on all 4 corners

•Center Manual Belly Jack

•1 Primary Catwalk color

•1 Secondary Catwalk color

•Anti-Slip Fiberglass Deck Grating

•2 – Emergency Engine Shutoff Buttons

•Certification & Engineering Accreditation

•Complete Turn-Over package included

•Auto Retracting Trough Kickers

•80 R Riveted Skate Chain

•3 Return Filters

•1 High Pressure Filter

•Dual 12K axels C/W 12 PLY Tires

•Skate pressure bypass plunger valve

•Kicker lockout plunger valve
